Overview
Premium Thunderbolt? 4 Docking Experience: ThinkPad Thunderbolt 4 Workstation Dock delivers reliable and consistent industry leading video, data and power connectivity.
Maximize Your Productivity
Expand your horizon with versatile 8K display support or multiple 4K displays support
Upto 230W Power Delivery to Workstation
Silent firmware upgrades
Supports select Intel? vPro? platforms and provides wired Intel? AMT? over Thunderbolt
Transfer data at lightning fast 40Gbps
The ThinkPad Thunderbolt 4 Workstation Dock is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
Key Details
The ThinkPad Thunderbolt? 4 Workstation Dock supports upto 230W PD
Single 8K@30Hz or upto 4 4K@60HZ display support
Silent firmware upgrades, vPro/AMT Pass through support
Data transfer rates upto 40 Gbps (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)
Tech Specs
| General | ThinkPad Thunderbolt 4 Workstation Dock - US |
|---|
| Supported Operating Systems | OS Independent |
|---|
| Included Accessory | 300W adapter, 1x power cord, standard Thunderbolt cable |
|---|
| Color | Black/Red |
|---|
| Max Number of External Monitors | 4 |
|---|
| Hardware Requirements | Host with USB-C/Thunderbolt port |
|---|
| Weight | 0.45Kg |
|---|
| Brand | ThinkPad |
|---|
| Output Power | Max 230W |
|---|
| OS Requirements | OS Independent |
|---|
| Charging Port | DC-IN |
|---|
| Packed Weight | 1.9Kg |
|---|
| Agency Approvals | cULus, FCC,ICES,NOM |
|---|
| Audio Ports | 1* 3.5mm Audio combo Jack |
|---|
| USB Ports | 4* USB-A 1* USB-C |
|---|
| Video Ports | 1* HDMI 2.1 2* DP 1.4 |
|---|
| Ethernet | 1* Gigabit Ethernet |
|---|
| Thunderbolt Port | 1* Thunderbolt Port - for Host connect 1* Thunderbolt Port - for Device connect |
|---|
| Package Type | brown box |
|---|
| Packed Dimensions (L x D x H) | 270*195*85mm |
|---|
| Height | 30mm |
|---|
| Length | 220mm |
|---|
| Depth | 80mm |
|---|
| Warranty Period | 3 years |
|---|
| Maximum Operating Temperature | 40 celsius |
|---|
| Minimum Operating Temperature | 0 celsius |
|---|
| Maximum Relative Humidity (%) | 95% |
|---|
| Minimum Relative Humidity (%) | 5% |
|---|
| Driver Needed | Yes |
|---|
| Input Power | 20V 15A |
|---|
| Physical Security Feature | 1* NanoSaver lock slot 1*MicroSaver lock slot |
|---|
| Power Button | Yes |
|---|
| Power Delivery | Yes |
|---|

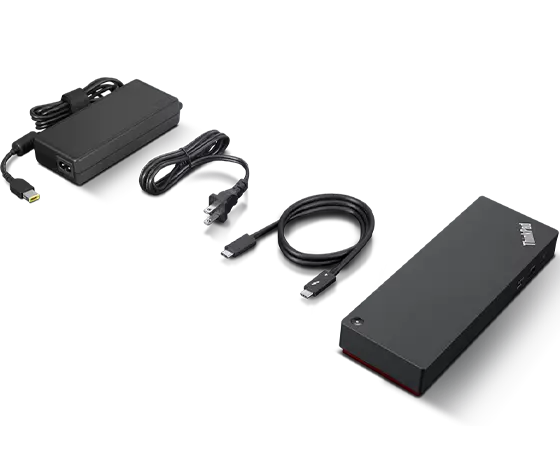

| Shipment Group | ThinkPad Universal TBT 4 Dock, 300W AC Power adapter, Power cord, Setup poster&Warranty Poster Standard TBT 4 Cable |
|---|
| Warranty Type | CRU |
|---|
| AC Plug | Slim Tip |
|---|
| Refresh Rate | 1* 8K 30Hz Via HDMI 2.1 4*4K 60 Hz |
|---|
