Overview
Enterprise-Grade Universal Thunderbolt? 4 Docking Experience. ThinkPad Universal Thunderbolt 4 Dock delivers reliable and consistent industry leading video, data and power connectivity in a Windows based mixed-PC environment:
·Maximize Your Productivity
·Expand your horizon with versatile 8K display support or multiple 4K displays support
·Silent firmware upgrades
·Supports select Intel? vPro? platforms and provides wired Intel? AMT? over Thunderbolt
·Transfer data at lightning fast 40Gbps
The ThinkPad Universal Thunderbolt 4 is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
Key Details
Supports upto 100W PD, Single 8K@30Hz or upto 4 4K@60HZ display support
Silent firmware upgrades
Enables Intel? AMT? over Thunderbolt with select Intel vPro? PCs
Data transfer rates upto 40 Gbps (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)
Tech Specs
| General | ThinkPad Universal Thunderbolt 4 Dock - US |
|---|
| Supported Operating Systems | OS Independent |
|---|

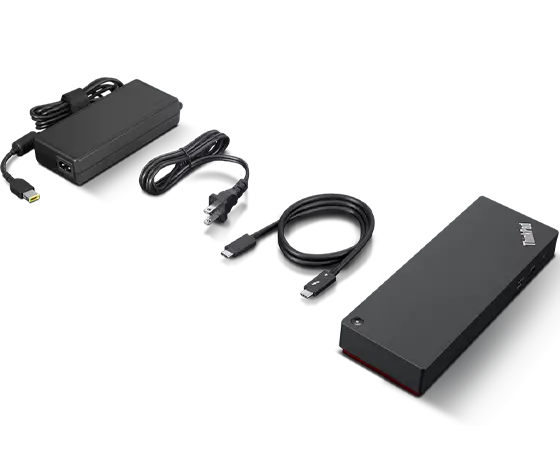

| Included Accessory | 135W adapter, 1x power cord, standard Thunderbolt cable |
|---|
| Color | Black/Red |
|---|
| Max Number of External Monitors | 4 |
|---|
| Hardware Requirements | Host with USB-C/Thunderbolt port |
|---|
| Weight | 0.45Kg |
|---|
| Brand | ThinkPad |
|---|
| Output Power | Max 100W |
|---|
| OS Requirements | OS Independent |
|---|
| Charging Port | DC-IN |
|---|
| Packed Weight | 1.2Kg |
|---|
| Agency Approvals | cULus, FCC,ICES,NOM |
|---|
| Audio Ports | 1* 3.5mm Audio combo Jack |
|---|
| USB Ports | 4* USB-A 1* USB-C |
|---|
| Video Ports | 1* HDMI 2.1 2* DP 1.4 |
|---|
| Ethernet | 1* Gigabit Ethernet |
|---|
| Thunderbolt Port | 1* Thunderbolt Port - for Host connect 1* Thunderbolt Port - for Device connect |
|---|
| Package Type | brown box |
|---|
| Packed Dimensions (L x D x H) | 270*195*85mm |
|---|
| Height | 30mm |
|---|
| Length | 220mm |
|---|
| Depth | 80mm |
|---|
| Warranty Period | 3 years |
|---|
| Maximum Operating Temperature | 40 celsius |
|---|
| Minimum Operating Temperature | 0 celsius |
|---|
| Maximum Relative Humidity (%) | 95% |
|---|
| Minimum Relative Humidity (%) | 5% |
|---|
| Driver Needed | Yes |
|---|
| Input Power | 20V 6.75A |
|---|
| Physical Security Feature | 1* NanoSaver lock slot 1*MicroSaver lock slot |
|---|
| Power Button | Yes |
|---|
| Power Delivery | Yes |
|---|
| Shipment Group | ThinkPad Universal TBT 4 Dock, 135W AC Power adapter, Power cord, Setup poster&Warranty Poster Standard TBT 4 Cable |
|---|
| Warranty Type | CRU |
|---|
| AC Plug | Slim Tip |
|---|
| Refresh Rate | 1* 8K 30Hz Via HDMI 2.1 4*4K 60 Hz |
|---|
