Color | Black |
Max Number of External Monitors | 3 |
Weight | 0.81 kg (1.79 lbs) |
Refresh Rate | DisplayPort: 4096 x 2160 @ 60 Hz; DisplayPort or HDMI: 4096 x 2160 @ 60 Hz; VGA: 2048 x 1536 @ 85 Hz;; "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop. |
AC Plug | American Standard Plug Type B |
Hardware Requirements | ThinkPad Side Docking Connector |
Output Power | 65 W |
Brand | ThinkPad |
OS Requirements | Windows 10 |
Agency Approvals | AS/NZS S-DOC, BSMI, CB, CE, EAC, EU DOC, FCC, ICES, KCC, NOM, UL/cUL, Ukr SEPRO, VCCI |
Audio Ports | 1 x 3.5 mm Stereo/Mic Combo Port |
Charging Port | ThinkPad Slim-tip Port |
USB Ports | 2 x USB-C (10 Gbps, 5V/3A power); 4 x USB 3.1 Gen 2 (10 Gbps, 1 always-on) |
Video Ports | 2 x DisplayPort 1.4; 1 x HDMI 2.0; 1 x VGA |
Package Type | Brown box |
Warranty Period | 3 Years |
Maximum Operating Temperature | 35 degrees Celsius (95 degrees Fahrenheit) |
Minimum Operating Temperature | 0 degrees Celsius (32 degrees Fahrenheit) |
Driver Needed | Preloaded in select ThinkPad laptops |
Input Power | 135 W |
Power Button | Yes |

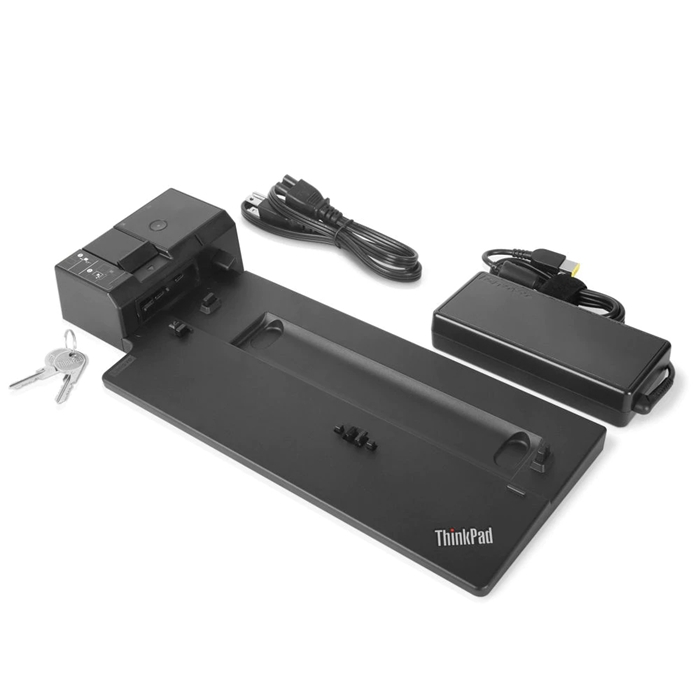

Shipment Group | ThinkPad Pro Docking Station; ThinkPad Slim-tip 135 W AC power adapter; Power cord; 2 keys; Product information, safety and warranty poster |
Compatibility | P52s, L580, L480, T580, P580p, T480s, T480, X1 Carbon Gen 6, X280 |
Supported Operating Systems | OS Independent |

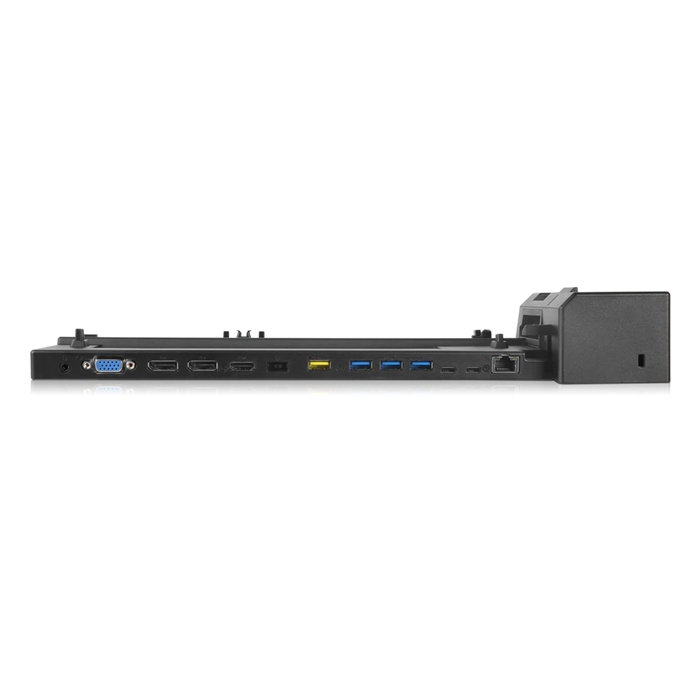

Other Information | 2 x DisplayPort 1.4 1 x HDMI 2.0 1 x VGA 2 x USB-C (10Gbps, 5V/3A power) 4 x USB 3.0 Gen 2 (10 Gbps, 1 always-on USB Charging) 1 x 3.5 mm Stereo/Mic Combo Port 1 x Gigabit Ethernet Port 1 x Kensington security lock slot |
